Description

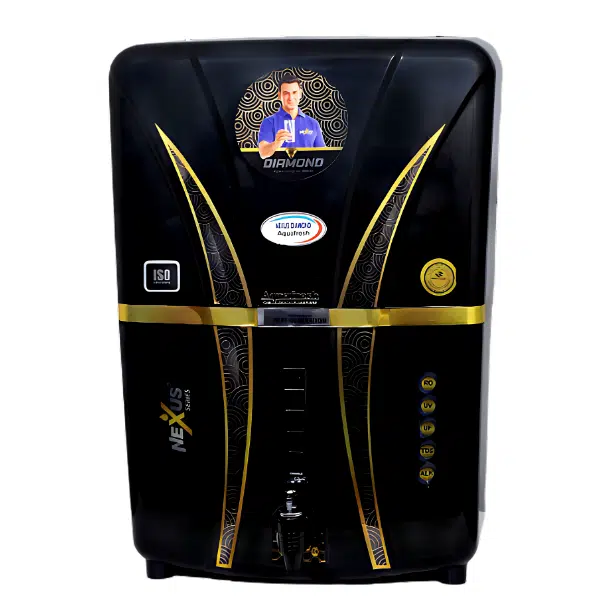

Nexus Diamond RO
The Nexus Diamond Black RO is one of the best model of Aquafresh which looks stylish and its black colour also it offers pure and clean drinking water us by using Alkaline technology.
Nexus Diamond RO Water Purifier: Advantages
1. IT has multi Purification from RO, UF, UV & TDS with Mineral Cartridge.
2. It provides 100% Safe & Pure drinking Water for your family.
3. It offers Great testing tea, coffee & cold drinks.
4. It has Sparkling crystal clear ice-cubes.
5. Cooking for delicacy.
6. Hygienic water for baby milk & food.
7. No need to purchase expensive mineral water.
8. Easy to maintain.
9. Enhances taste of drinking water.
10. Refreshing beverages, soups & sauces.
Nexus Diamond Water Purifier Specifications:
1. Wall-mount cum Counter-top water purifier.
2. RO + UV+TDS Minimiser Technology.
3. Anti-bacteria 3-in-1 Silver Doser, Taste Conditioner
and Activated Carbon as post treatment of RO, to
enhance the shelf life & taste of water.
4. Fully Automatic Operations.
5. Push – fit Connectors for leak proof performance & longer life.
6. In-built storage tank of Volume capacity: 12 ltrs with purified water level indicator.
7. High Pressure Pump to flush out impurities & to enhance
membrane life.
8. Built-in SMPS to operate from 120~280 V AC for
erratic voltage supply.
9. Fully automatic water level cut-off with Auto-start /
Auto-off.
10. Purification Capacity: Up to 15 lph†
11.Purify any source of water Like under ground water, bore-well, overhead storage tank & municipal tap water.
| Purification capacity | 12-15* Litres per hour * |
| Max Duty Cycle | 120 liters per Day |
| Storage Tank Capacity | 12 Litres |
| Purification Stages. | Pre-Candle, Sediment Cartridge, Activated Carbon, Reverse Osmosis (RO) Ultra Violet (UV) Ultra Filteration (UF) TDS Minimizer, Mineral Cartridge (4”) , |
| RO Membrane Capacity | 75 GPD |
| RO Pump Power | 75 GPD |
| Minimum Inlet Water Pressure | 0.3 kg/sq cm |
| Maximum Inlet water Pressure |
2 kg/sq cm ( if input water pressure is more than 2kg/sq cm , install PRV before the Unit)
|
| Input Voltage | 160-300V AC ( 50Hz) |
| Operating Voltage | 24V DC |
| Input water Temperature | Min 5 Celsius & Max 50 Celsius |
| Total Dissolved Solids (TDS) | Up to 2000 ppm |
| Total Hardness | 600 ppm (max) |
| Rejection of TDS | Up to 95% |
| Recovery | Up to 25% |
| Dimensions (mm) | L 415 W 265 H 524 |
| Net Weight | 9.5 kgs. |
| Power rating | 40W |
* Purification output capacity tested on raw water with TDS level of 750 ppm at room temperature
Warranty: One year Warranty on RO Pump and Electric Power Supply | Installation charges rupees five hundred and service visit rupee three hunderd will be applied in warranty.
Warning / Disclaimer: We do not take responsibility of the product performance and warranty support in case of products sold by sources not authorized by us including e-commerce website and portals like Snapdeal, Flipkart, Amazon, PayTM, Shopclues etc.
FAQs for Aqua Nexus Water Purifier:
- What are the key features of the Nexus Diamond Black RO?
- This RO system provides sparkling benefits:
- 10 Ltr storage tank:Enough pure water for your loyal subjects (or just yourself!). No more waiting for the next glass to fill.
- 100% automatic operation:Sit back, relax, and let technology reign. No more manual fussing – the system takes care of itself!
- Sleek black design:A crown jewel adorning your kitchen with its modern and elegant look. This RO won’t just purify your water; it will elevate your countertop!
